XWolf300
XWolf300
What does play mean? LONCIN XWolf 300 explains something quite different to you. Safe or stable driving on smooth road is no longer your partner, go to forest in mountain, desert or wilderness, whose strong ability for passing through, makes you play full skill and show successful life in such complex roads. Better driving feels take you further away, a player of high-end, with ambition in mind, leaves a totem of fun by deep tire print.
300
Multi-angle
images
Standing engine for ATV only of water cooling
Good performance in medium and low speed, faster acceleration and stronger power

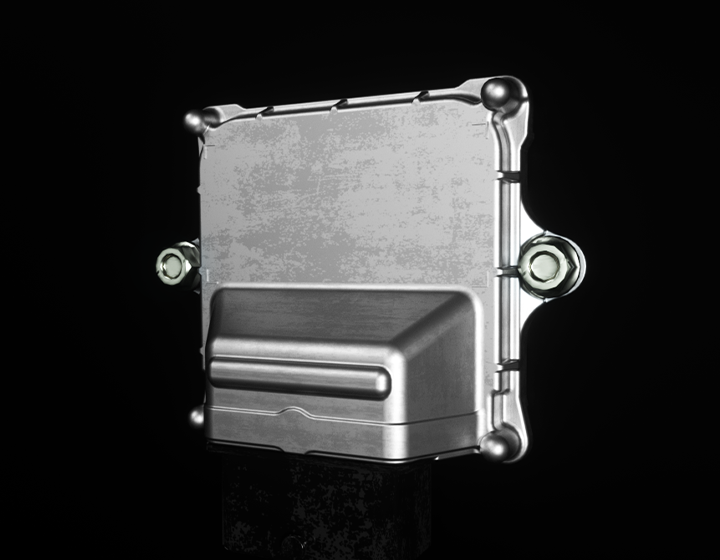

EFI system of BOSCH
More suitability and stable performance
CVT transmission of high performance
Wider range for speed ratio, satisfied maximum loading under highest speed for gradeability in cross-country
Shaft transmission of completely closed structure
Higher transmission efficiency, weaker noise, longer maintenance period and better durability
Front double A-shaped suspension rack & Rear suspension of rear fork type
Free play of 170mm for both front and rear wheels, qualified by CAE and other tests under diffefent road conditions, effectively absorb shaking from ground, better cross-country with more comfortable driving.
Hydraulic disc brake with double circuit both front and rear
Good durability for heat and water decay, with high braking performance and decrease frequency for replacement
Element of air filter + Imported patent desigh for air inlet port
Better performance for mud and dust proof, high efficiency for filter makes longer working life
Brake pad with high durability
Adopt brake pad with high quality, more free operation and safer, whose working life reaches 6000km
Specifications
| Engine specification | Single cylinder, SOHC, liquid cooled |
| Displacement | 271cc |
| Bore x Stroke | 72.8×65.2mm |
| Compression ratio | 11:1 |
| Maximal power | 16.8kw/7000rpm |
| Maximal torque | 25.5N·m/5500rpm |
| Fuel supply | BOSCH ® EFI |
| Speed transmission | CVT，L / H / N / R |
| LxWxH | 1940×1095×1175mm |
| Wheelbase | 1210mm |
| Seat height | 885(To ground）mm |
| Minimum ground clearance | 270mm |
| Minimum turning radius | 2900mm |
| Dry weight | 240kg |
| Maximal loading | 163kg |
| Fuel tank capacity | 14L |
| Drive mode | 2WD |
| Brake mode | Front：Double plate Rear：Single plate |
| Suspension mode | Front：Double A-shaped arm Rear：Fork type of swinging arm |
| Front shock absorber | Oil-air mixture |
| Rear shock absorber | Oil-air mixture |
| Wheel hub specification | Steel wheel of 10 inches |
| Front tire | AT22×7-10 |
| Rear tire | AT22×10-10 |
