XWolf550L
XWolf550
Someone knows work only, his soul must be falling behind, but, who says? When a LONCIN XWolf 550 & roaring power armed a man, everything became alive and lively, without thoughts on working strength, taking all working gains to wherever you want. Furthermore wonderful, such a strong and reliable workmate, who is also friendly and gentle to everyone, once read your mind, say no to hesitation.
500
Multi-angle
images

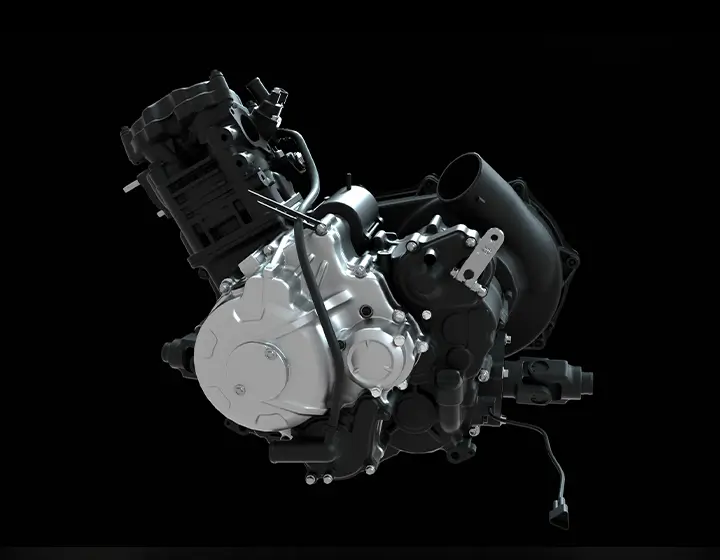

Robust power of 4 valves
Engine under Loncin of 4 valves and water cooling with displacement of 499.5cc, adopt forced back cooling for piston and oil-air separation of patent technologies makes longer working life and stronger power.
Individual suspension rack of double cross arm for both front and rear
Individual suspension rack of double cross arm for both front and rear, analyzied by systematic K&C and adjusted shock absorber of oil-air mixture, bigger free-play design for front and rear, better performance for cross-country.
Effective braking system
Disc brake for 4 wheels of 210mm, piston caliper of auto grade, jointly brake by hand and foot, with strong braking force and quick response
EFI of BOSCH
Strong suitability and stable performance
4 wheel driving by 3 modes
4 wheel driving by 3 modes, fast shift along 2WD, 4WD and 4WD locking-up, provides more excellent experience for cross-country driving.
Electric assistant steering of EPS
Easy steering of EPS， reduces fatigue for cross-country of long time.
Powerful dragging
Electric winch of 500lb(About 1135kg），controlled by button on switch assy. on grip, easily rescue weight over 2.5 times weight of itself.
Excellent loading
Maximal of 240kg（About 529lb），reignforce tubular plate of metallic luggage rack for both front and rear, firmly fixes luggage and other materials.
Super space of 25L for fuel tank
Fuel tank with super space, under working cindition fo EPA the driving range reaches 400km
Digital and color speedometer of multi-function
Simple and clear design for speedometer display page, know everything about vehicle easily while making more comfortable driving.
Specifications
| Engine specification | Single cylinder, SOHC, 4 valves, liquid cooled |
| Displacement | 499.5cc |
| Bore x Stroke | 91×76.8mm |
| Compression ratio | 11:1 |
| Maximal power | 34kw/6700rpm |
| Maximal torque | 53N·m/5200rpm |
| Fuel supply | BOSCH EFI |
| Speed transmission | CVT+L/H/N/R/P |
| LxWxH | 2040x1190x1250mm |
| Wheelbase | 1300mm |
| Seat height | 900(To ground）mm |
| Minimum ground clearance | 280mm |
| Minimum turning radius | 3.45m |
| Dry weight | 340kg |
| Maximal loading | 240kg |
| Fuel tank capacity | 25L |
| Drive mode | 2WD/4WD/4WD-Lock |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Oil-air mixture |
| Rear shock absorber | Oil-air mixture |
| Wheel hub specification | Steel wheel of 12 inches |
| Front tire | AT25×8-12 |
| Rear tire | AT25×10-12 |
XWolf550L
Play and work, we need partners! The double - row seats of LONCIN XWolf 550l are more suitable for two people to work together seamlessly. Bring your partner, use the excellent terrain passability to go to farther places, and the efficient shock absorption makes the ride comfortable for both of you. If you love adventure, let's go together!
500L
Multi-angle
images
Robust power of 4 valves
Engine under Loncin of 4 valves and water cooling with displacement of 499.5cc, adopt forced back cooling for piston and oil-air separation of patent technologies makes longer working life and stronger power.
Individual suspension rack of double cross arm for both front and rear
Individual suspension rack of double cross arm for both front and rear, analyzied by systematic K&C and adjusted shock absorber of oil-air mixture, bigger free-play design for front and rear, better performance for cross-country.
Effective braking system
Disc brake for 4 wheels of 210mm, piston caliper of auto grade, jointly brake by hand and foot, with strong braking force and quick response
EFI of BOSCH
Strong suitability and stable performance
4 wheel driving by 3 modes
4 wheel driving by 3 modes, fast shift along 2WD, 4WD and 4WD locking-up, provides more excellent experience for cross-country driving.
Electric assistant steering of EPS
Easy steering of EPS， reduces fatigue for cross-country of long time.
Powerful dragging
Electric winch of 500lb(About 1135kg），controlled by button on switch assy. on grip, easily rescue weight over 2.5 times weight of itself.
Excellent loading
Maximal of 240kg（About 529lb），reignforce tubular plate of metallic luggage rack for both front and rear, firmly fixes luggage and other materials.
Super space of 25L for fuel tank
Fuel tank with super space, under working cindition fo EPA the driving range reaches 400km
Digital and color speedometer of multi-function
Simple and clear design for speedometer display page, know everything about vehicle easily while making more comfortable driving.
Specifications
| Engine specification | Single cylinder, SOHC, 4 valves, liquid cooled |
| Displacement | 499.5cc |
| Bore x Stroke | 91×76.8mm |
| Compression ratio | 11:1 |
| Maximal power | 34kw/6700rpm |
| Maximal torque | 53N·m/5200rpm |
| Fuel supply | BOSCH EFI |
| Speed transmission | CVT+L/H/N/R/P |
| LxWxH | 2220x1190x1320mm |
| Wheelbase | 1480mm |
| Seat height | 900(To ground）mm |
| Minimum ground clearance | 280mm |
| Minimum turning radius | 3.75m |
| Dry weight | 348kg |
| Maximal loading | 230kg |
| Fuel tank capacity | 25L |
| Drive mode | 2WD/4WD/4WD-Lock |
| Brake mode | Disc brake for 4 wheels |
| Suspension mode | Front：Double A-shaped arm of arch Rear：Double A-shaped arm |
| Front shock absorber | Oil-air mixture |
| Rear shock absorber | Oil-air mixture |
| Wheel hub specification | Steel wheel of 12 inches |
| Front tire | AT25×8-12 |
| Rear tire | AT25×10-12 |
